Professional 4-Channel Wireless A/V Transmitter & Receiver Kit
Model Number: 500T-150R

This 4-Channel Wireless A/V Transmitter & Receiver kit features high sensitivity, high quality, long reception range, small compact size, minimal weight, low power consumption, low maintenance, easy installation and operation, easy concealment, and more! With four of this 4-Channel Wireless Transmitter & Receiver kits, you can connect up to 4 different A/V sources (e.g. Micro Cameras, one at each pre-set locked channel/frequency) and transmit simultaneously without interference! It is great for value-added product/application developments! High Gain Antenna is available, contact us to upgrade!

Higher power transmitters are available for ordering, contact us!

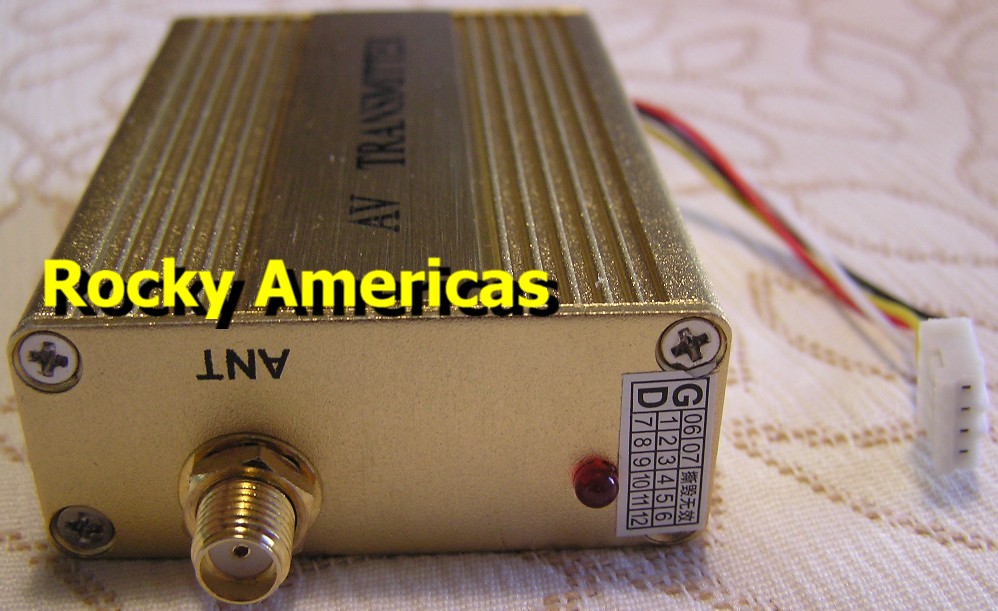

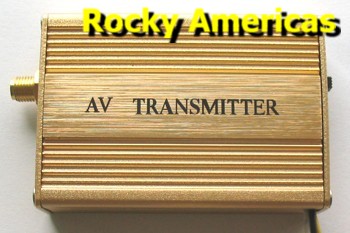

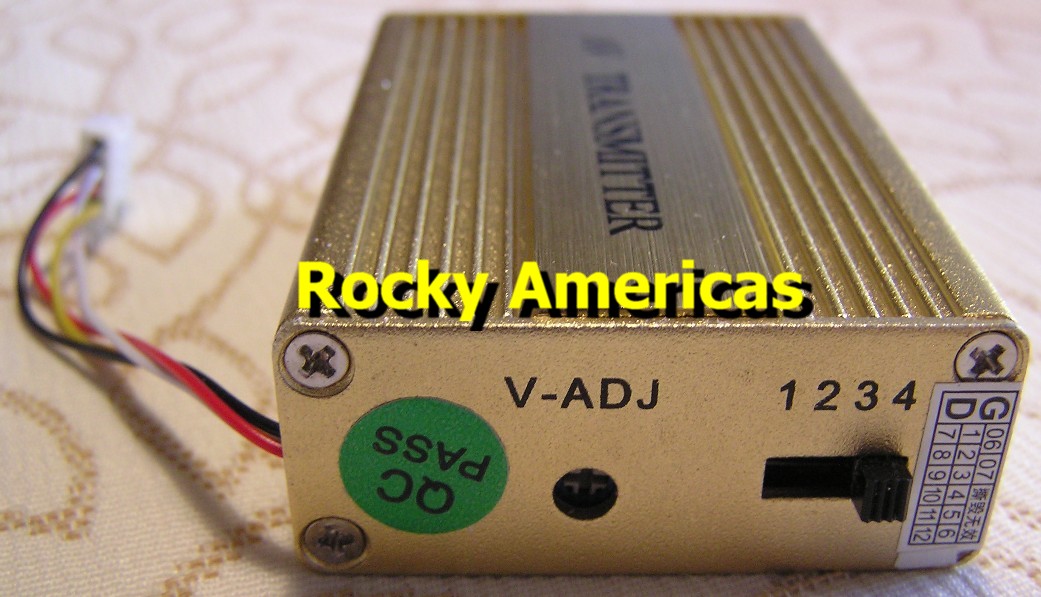

4-Channel Wireless A/V Transmitter (actual color of the transmitter may vary: black, gold, or silver)

4-Channel Wireless A/V Transmitter

4-Pin/Connector Cable RCA A/V Cable Download Document

CAUTION: To avoid permanent damage, antennas for BOTH the transmitter and the receiver MUST be attached before being powered on. End user of this device might be required to obtain license for operating the device, consult your legal advisor. The manufacturer or the seller of this device cannot be held liable under any circumstances if the device is used for illegal purposes, offenders are subject to severe legal punishments by government law enforcement agencies.

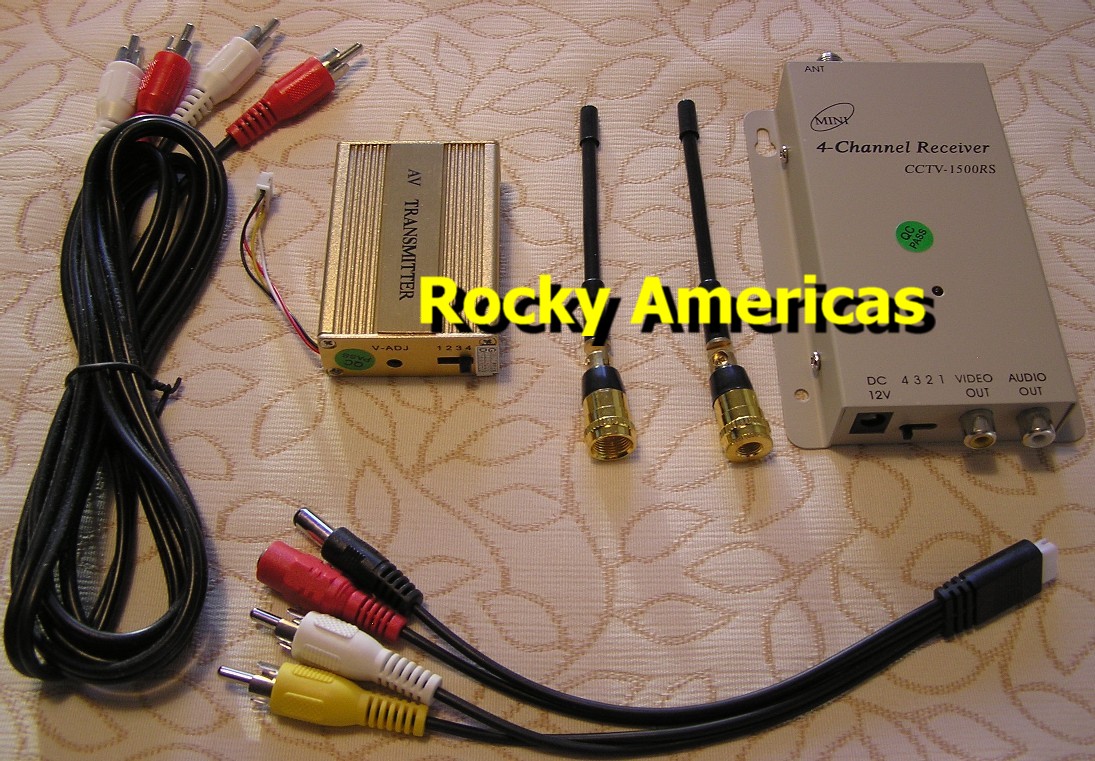

500T-150R 4-Channel Wireless A/V Transmitter & Receiver Kit Content:
One (1) 4-Channel Wireless A/V Transmitter with antenna, one (1) matching 4-Channel Wireless A/V Receiver with reception antenna, one (1) A/V/Power 4-Pin/Connector Cable, and one (1) RCA type A/V Cable.

Special Note:

• Standard antennas (pictured above with device) are not included when upgraded high gain antenna have been purchased/included.
• The receiver audio output is at "mic" level, NOT "line" level. This is NOT a prefessional audio only transmitter/receiver kit and should NOT be used as studio audio only device.
• The actual color of the wireless transmitter you will receive may vary without notice.
• Pictures above are manufacturer stock photos, actual items might look a little bit different.

System Specifications:

Effective Reception Range	up to 1500 feet "line of sight" (LOS) *see note below.	Power Supply	DC 12V
Output Frequency	0.9-1.2 GHz	Power Consumption	< 960 mW
Signal Input	Standard RCA type AV	Signal Output	Standard RCA type AV ("mic" level audio)
Transmitter Dimensions	55 mm x 45 mm x 18 mm	Receiver Dimensions	79 mm x 115 m x 23 mm

Buy Professional 4-Channel Wireless A/V Transmitter & Receiver Now:
US$169.99 US$159.99 + U.S. S/H (US$19.00)
(clicking the "Add to Cart" button below indicates you agree with all the terms stated on the Support page)
