Complete Heavy Duty Vehicle Rear View Backup System - High Quality Heavy Duty 7" Color Mobile TFT LCD and CCD Color Heavy Duty Night Vision Infrared Wide View Angle Vehicle Rear View Backup Camera
Model Number: MO127CW087, MO127CW087-2
NEW Customer Reviews

Complete
                        Vehicle Rear View System MO127CW087
Every year, thousands vehicle backup accidents happen nation wide. In many cases, children are injured and killed because drivers (a lot of times, their own parents) don't see them while backing up. The area, often called blind spot, behind your vehicle can be a killing zone! The blind area ranges from 17 feet for a Honda Accord to 51 feet for a Chevrolet Avalanche. Vehicle rear view backup cameras do not replace safety controls/activities, but they provide additional safety helps if you drive a RV, truck, bus, van, airplane, or any vehicle that has no rear view mirror or poor rear vision.

System Features Highlight:

  • Top Quality Commercial Grade Heavy Duty Complete System
  • One (1) CCD color heavy duty night vision infrared wide view angle rear view backup camera is included (as pictured on the left)
  • 120 degree wide view angle CCD rear view camera, 18 infrared LEDs for night vision
  • One 30 feet weather-proof power/audio/video with aviation connectors camera connecting extension cable included
  • Expandable - optionally supports up to 3 additional A/V inputs (4 A/V inputs in total) - you can have 1 rear view backup camera, 1 left side view camera, 1 right side view camera, and 1 DVD/other A/V source input (conveniently on the front panel of the LCD)
  • (Click here for the details of the optional system side view camera)
  • Auto activate rear view backup camera, left side camera, and right side camera (when additional cameras are installed)
  • Illuminated back light control buttons on the LCD front panel - great for night use
  • Operates on 12-32V, supports 12V or 24V commercial vehicle batteries
  • System is compatible with any of our high quality vehicle rear view backup cameras, contact us if you prefer a different model camera.
  • Download the quick connection instructions for standard one-camera system

LCD Features:

  • High Quality Heavy Duty 7" COLOR Mobile TFT LCD
  • High resolution display, wide view angle view flat screen
  • Adjustable picture orientation: Left/Right reverse image switch, Up/Down inverted image switch - supports roof mounting
  • Multiple language on-screen menu: English, Japanese, French, Portuguese, Spanish, Russian, Turkish, German, Italian, Bulgarian, Arabic
  • Illuminated back light control buttons on the front panel - great for night use
  • Full function remote control
  • Multiple video formats: AUTO, NTSC, N443, N358, PAL
  • Up to 4 A/V inputs, 3 cameras inputs on the back and 1 A/V input on the front panel
  • Extra RCA A/V output to support additional/external monitor, VCR, recording device
  • Built-in loud audio speaker
  • Auto activate rear view backup camera, left side camera, and right side camera when additional cameras are installed
  • Supports flat surface mount, in-dash mount, roof mount options - Standard Mount Bracket and Universal Mount Bracket both included
  • Operates on 12-32V, supports 12V or 24V vehicle battery
  • Color coded 22-pin Power A/V Cable for easy connection
  • YOUR FREE one (1) 30 feet camera connecting extension cable included
MO127
                            Angles

Camera Features:

  • CCD COLOR Heavy Duty Night Vision Infrared Wide View Angle Vehicle Rear View Backup Camera
  • Latest Model - heavy duty high hardness metal shell housing
  • 1/3" CCD SHARP image sensor
  • High power, 18 over launch infrared tubes - auto activate at night
  • High resolution 420 TV lines
  • Low illumination requirement - 0 LUX (w/LEDs on)
  • User adjust left/right mirror reverse image - can set to display a reversed camera image on the monitor (for vehicle rear viewing to duplicate the normal view seen in a rear-view mirror) OR a normal view on the monitor (for vehicle front viewing) - connect two-pin jumper connector to the mirror reverse wire to set for normal view
  • Use standard vehicle power supply of 12V DC
  • Water-proof without extra housing: for normal usage ONLY. Camera cables are not designed to be exposed to the outside and must be properly sealed against moisture. Incorrect installation and abnormal usage MAY result in loosing water-proof feature.
  • Wide View Angle - 120 degree - If you just buy a cheap 40 degree rear view camera, why bother? You can see more with your own eyes (through standard vehicle mirrors) than the camera can see! Without a wide view angle lens, it is not a vehicle rear view camera!
  • Audio capability lets you hear your friend who is helping you backing up from the back of your vehicle!
  • Standard RCA A/V output
  • YOUR FREE bonus one (1) Male Power Lead Plug (to be used if you want to power the camera separately)
  • Click here to purchase the camera ONLY

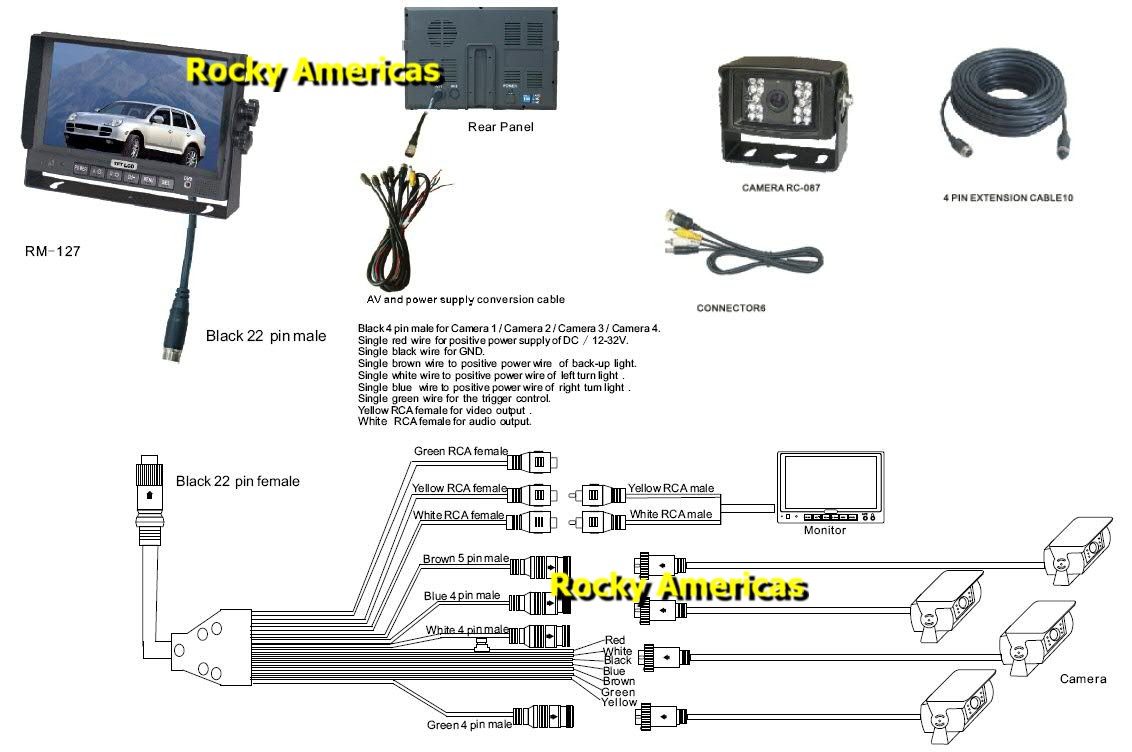

System Function/Connection Diagram:


(diagram above shows optional additional cameras)

MO127
                          Functions
(click on the diagram above to enlarge)

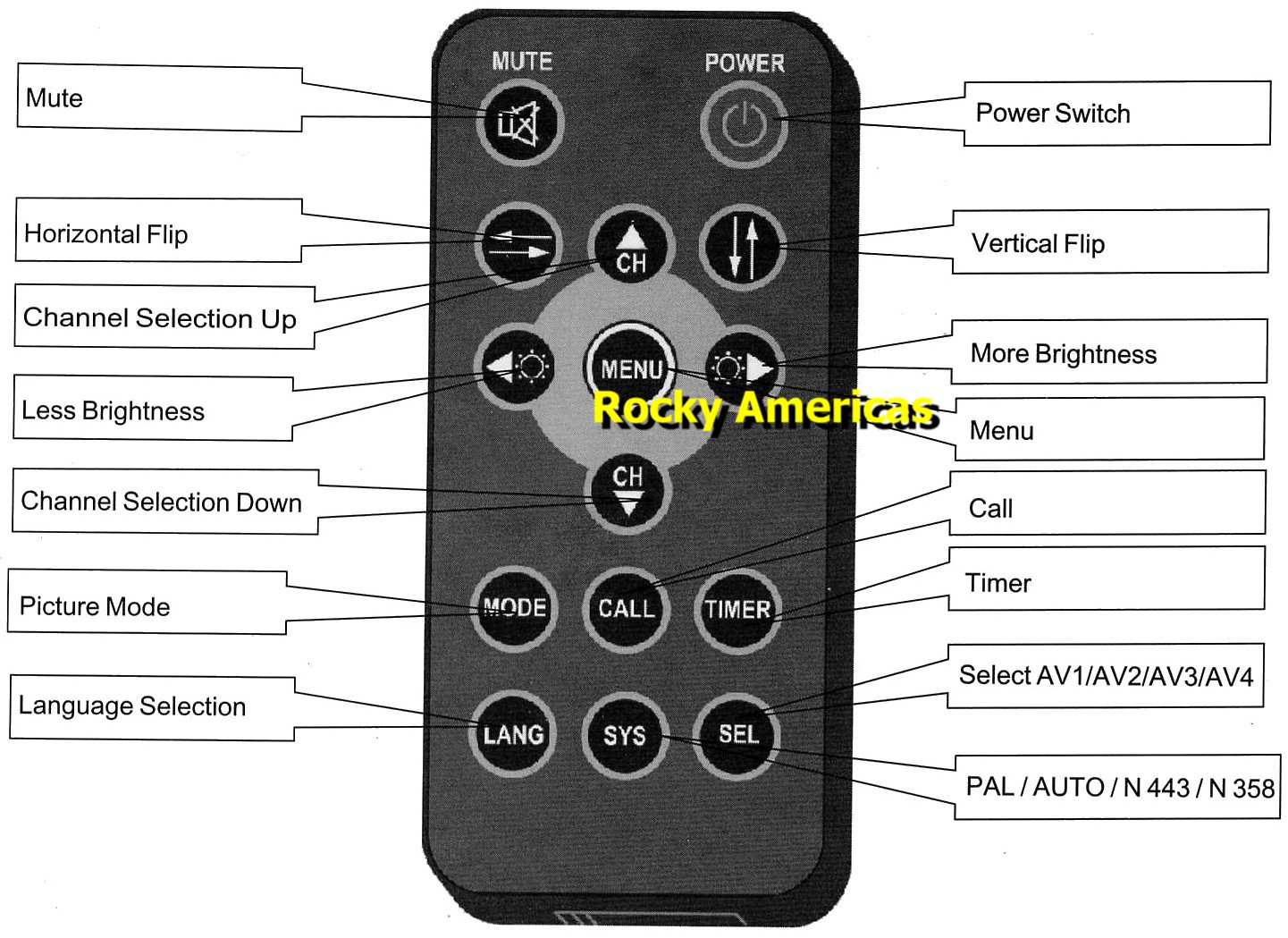

Remote Control Functions
(click on the diagram above to enlarge)
System Accessories:
22-pin
                          poewr/audio/video cable
22-pin Power A/V Cable
Front Panel AV
                          Input Cable
Front Panel A/V Input Cable
Standard LCD
                          Monitor Bracket
Standard Mount Bracket
Universal LCD
                          Monitor Bracket
Universal Mount Bracket
Remote Control
Remote Control
Sun Shield
Sun Shield
Angle Adjust
                          Screws
Angle Adjust Screws
Camera Power A/V
                          RCA Adapter
Camera 4-pin Power A/V to RCA Adapter
30 Feet Camera
                          Connection Extension Cable
30 Feet Camera Connecting Extension Cable

LCD Specifications:

Display Screen 7" Color TFT LCD
Resolution 1440 (H) x 234 (V)
Audio Output
1W
Power Supply
Vehicle Battery 12-32V
Loud Speaker
one 40 mm round speaker
Doc Pitch
0.321 (W) x 0.372 (H)
Power Consumption
approx. 10W
Contrast
250:1
Brightness 450 cd/m2 View Angle
Up 30°, Down 60°, Left/Right 60°
Monitor Size without Mount
182mm x 122mm x 26mm (7.2" x 4.8" x 1.0")
Weight without Cable
485 g (approx. 1 pound)
Operating Temperature
-4°F - 158°F (-20°C - 70°C) RH 90% Storage Temperature
-22°F - 176°F (-30°C - 80°C) RH 90%
(specifications are subject to change without notice)
MO127
                      Dimension
Approx. 7.2" (w) x 4.8" (h) x 1.0" (d)

Camera Specifications:

Image Sensor 1/3" SHARP CCD Sensor Horizontal Resolution 420 TV Lines
Effective Pixels 512(H) x 492(V) Minimum Illumination 0 LUX (w/ LEDs on) / F:2.0
Horizontal Sync Frequency
15,734 kHz
Vertical Sync Frequency
60 Hz
Sensing Area
4.9 mm x 3.7 mm
Sync System
Internal
Video Out Signal 1.0 Vp-p 75 ohm Power Supply DC 12V
AGC
Auto
S/N Ratio
Better than 48dB
Electronic Shutter
1/60 - 1/10,000 second
Weight
Approx. 13.4 oz (380 g)
IR Distance 3 - 5 meters (10 - 15 feet)
Built-in Lens
f=2.8mm / F=2.0
Cable Output
Standard RCA Video (Yellow) & DC (Red) Jack
BLC
Auto
White Balance
Auto
TV System
NTSC
Operating Temperature
-4°F - 158°F (-20°C - 70°C) / RH 95% Max
Storage Temperature
-40°F - 176°F (-40°C - 80°C) / RH 95% Max
Current Consumption
Max 300mA
Lens Angel
Wide View Angel 120°
Dimensions (see picture below) 75 mm (w) x 62 mm (h) x 55 mm (d) with bracket -> approx. 2.9" (w) x 2.4" (h) x 2.2" (d)

(specifications are subject to change without notice)

CW087
                    Dimension
Approx. 2.9" (w) x 2.4" (h) x 2.2" (d)

One-Camera System Package Content (as pictured above):
One (1) MO127 Heavy Duty 7" Color Mobile TFT LCD Monitor, one (1) CW087 Heavy Duty Color CCD Night Vision Infrared A/V Wide View Angle Vehicle Rear View Backup Camera, one (1) 22-pin Power A/V Cable, one (1) Front Panel A/V Input Cable, one (1) Standard Mount Bracket, one (1) Universal Mount Bracket, one (1) Remote Control, one (1) Monitor Sun Shield, four (4) Monitor Angle Adjust Screws, one (1) Camera 4-pin Power A/V to RCA Adapter, one (1) FREE bonus 30 Feet Camera Connecting Extension Cable, one (1) User Manual, one (1) Quick Connection Instruction, one (1) CW087 Specification Sheet, and one (1) FREE bonus Male Power Lead Plug for camera.

Note: Two-Camera System Package comes with two (2) CW087 cameras, two (2) 4-pin Power A/V to RCA adapters, two (2) 30 Feet connecting cables, and two (2) power plugs.

Buy Complete Heavy Duty Vehicle Rear View Backup System with 7" TFT LCD and CCD Wide View Angle Camera Now:
(clicking the "Add to Cart" button below indicates you agree with all terms stated on the Support page)

MO127CW087 (One-Camera System)
US$499.99 US$339.99 + U.S. S/H (US$35.00)
MO127CW087-2 (Two-Camera System) - Best Deal
US$599.99
US$419.99 + U.S. S/H (US$45.00)
