Complete Heavy Duty Vehicle Rear View Backup 3-Camera System - High Quality Heavy Duty 7" Color Mobile TFT LCD with Built-in Quad Processor and CCD Color Heavy Duty Night Vision Infrared Wide View Angle Vehicle Rear View Backup and Side View Cameras
Model Number: MO136CW087CS4012
NEW Customer Reviews

Complete Vehicle Rear View 3-Camera
System

Every year, thousands vehicle backup accidents happen nation wide. In many cases, children are injured and killed because drivers (a lot of times, their own parents) don't see them while backing up. The area, often called blind spot, behind your vehicle can be a killing zone! The blind area ranges from 17 feet for a Honda Accord to 51 feet for a Chevrolet Avalanche. Vehicle rear view backup cameras do not replace safety controls/activities, but they provide additional safety helps if you drive a RV, truck, bus, van, airplane, or any vehicle that has no rear view mirror or poor rear vision.

System Features Highlight:

Top Quality Commercial Grade Heavy Duty Complete System
High quality heavy duty 7" color mobile TFT LCD with built-in quad processor - Up to four camera/video inputs can show in split screen at the same time
One (1) CCD color heavy duty night vision infrared wide view angle rear view backup camera is included
Two (2) CCD side mount color night vision infrared wide view angle vehicle side view backup camera are included
120 degree wide view angle CCD rear/side view camera, 18 (9 for side view) infrared LEDs for night vision
One 30 feet weather-proof power/audio/video with aviation connectors camera connecting extension cable included
Two 15 feet weather-proof power/audio/video with aviation connectors camera connecting extension cables included
Expandable - supports one additional A/V input through wiring harness or front panel of the LCD
Auto activate rear view backup camera, left side camera, and right side camera
Illuminated back light control buttons on the LCD front panel - great for night use
Operates on 12-32V, supports 12V or 24V commercial vehicle batteries
System is compatible with any of our high quality vehicle rear view backup cameras, contact us if you prefer a different model camera.
Download the quick connection instructions

LCD Features:

High Quality Heavy Duty 7" COLOR Mobile TFT Digital LCD
Built-in quad processor - displays full screen (one input), dual/three/quad split screen, picture in picture (PIP), and many more display mode split configurations
On screen camera/video input label for each of the four inputs
High resolution display, wide view angle view flat screen
Adjustable picture orientation: Left/Right reverse image switch, Up/Down inverted image switch - supports roof mounting
Multiple language on-screen menu: English, Japanese, French, Portuguese, Spanish, Russian, Turkish, German, Italian, Bulgarian, Arabic
Illuminated back light control buttons on the front panel - great for night use
Full function remote control
Multiple video formats: AUTO, NTSC, N443, N358, PAL
Four A/V inputs, three cameras inputs through wiring harness and one A/V input on the front panel
Extra RCA A/V output to support additional/external monitor, VCR, recording device
Built-in loud audio speaker
Auto activate rear view backup camera, left side camera, and right side camera through trigger wires
Volume, brightness, color, contrast, sharpness adjustment for each video input
Supports flat surface mount, in-dash mount, roof mount options - Standard Mount Bracket and Universal Mount Bracket both included
Operates on 12-32V, supports 12V or 24V vehicle battery
Color coded 22-pin Power A/V Cable for easy connection
YOUR FREE one (1) 30 feet AND two (2) 15 feet camera connecting extension cables are included

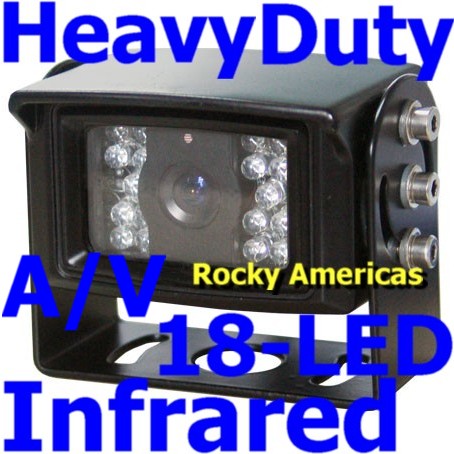

Camera Features:

CCD COLOR Heavy Duty Night Vision Infrared Wide View Angle Vehicle Rear View and Side View Backup Cameras
Latest Model - heavy duty high hardness metal shell housing rear view camera
Side view cameras attach vertically to the side walls of your large vehicles such as truck, RV, van, bus, etc. to provide additional side views
1/3" CCD SHARP image sensor
High power, 18 (9 for side view) over launch infrared tubes - auto activate at night
High resolution 420 TV lines
Low illumination requirement - 0 LUX (w/LEDs on)
User adjust left/right mirror reverse image - can set to display a reversed camera image on the monitor (for vehicle rear viewing to duplicate the normal view seen in a rear-view mirror) OR a normal view on the monitor (for vehicle front viewing) - connect two-pin jumper connector to the mirror reverse wire to set for normal view
Use standard vehicle power supply of 12V DC
Water-proof without extra housing: for normal usage ONLY. Camera cables are not designed to be exposed to the outside and must be properly sealed against moisture. Incorrect installation and abnormal usage MAY result in loosing water-proof feature.
Wide View Angle - 120 degree - If you just buy a cheap 40 degree rear view camera, why bother? You can see more with your own eyes (through standard vehicle mirrors) than the camera can see! Without a wide view angle lens, it is not a vehicle rear view camera!
Audio capability on the rear view camera lets you hear your friend who is helping you backing up from the back of your vehicle!
Standard RCA A/V output
YOUR FREE bonus three (3) Male Power Lead Plug (to be used if you want to power the camera separately)
To purchase the cameras ONLY:

System Function/Connection Diagram:

(diagram above shows an optional 4th camera)

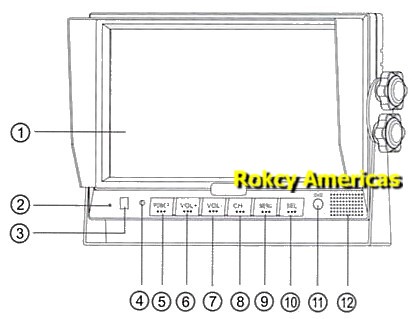

LCD Functions:

1. Color LCD screen
2. Button back light sensor
3. Remote control sensor
4. Power indicator
5. Power switch
6. VOL +: Volume up / menu selection down
7. VOL -: Volume down / menu selection up
8. CH -: Display mode selection
9. Menu
10. Jump key selector
11. Front panel A/V input
12. Loud speaker

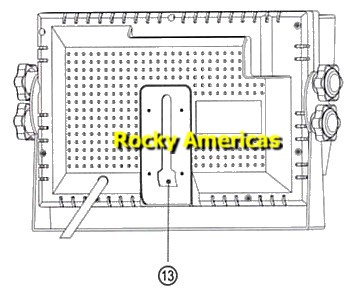

13. Installation port for universal mount bracket

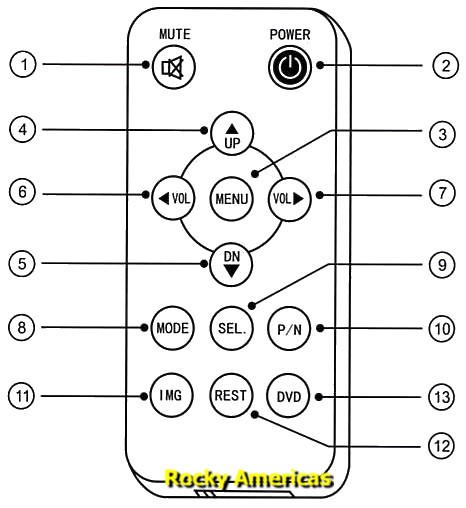

Remote Control Functions:

1. Mute
2. Power
3. Menu
4. Up
5. Down
6. VOL -: Volume down / menu selection up
7. VOL +: Volume up / menu selection down
8. Display mode
9. Jump key selector
10. PAL/NTSC system select
11. Language select
12. System reset
13. Front panel A/V input (DVD) select

System Accessories:

22-pin Power A/V Cable	Front Panel A/V Input Cable	Standard Mount Bracket	Universal Mount Bracket	Remote Control
Sun Shield	Angle Adjust Screws	Camera 4-pin Power A/V to RCA Adapter	30/15 Feet Camera Connecting Extension Cable

LCD Specifications:

Display Screen	7" Color TFT LCD	Resolution	2400 (H) x 480 (V)
Audio Output	1W	Power Supply	Vehicle Battery 12-32V
Loud Speaker	one 40 mm round speaker	Doc Pitch	0.192 (H) x 0.1805 (V)
Power Consumption	Max. 25W	Contrast	500:1
Brightness	400 cd/m²	View Angle	Up 50°, Down 60°, Left/Right 70°
Aspect Ratio	16:9	Power for Camera	Max. 4 x 300mA, 12V
Monitor Size without Mount	Approx. 182mm x 122mm x 43mm (7.2" x 4.8" x 1.7")	Weight without Cable	580 g (approx. 20.5 oz)
Operating Temperature	14°F - 149°F (-10°C - 65°C)	Storage Temperature	-22°F - 176°F (-30°C - 80°C)

(specifications are subject to change without notice)
MO127

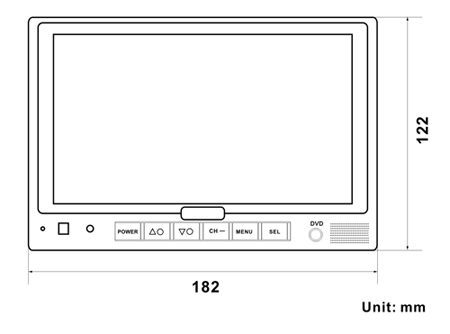

Dimension

Approx. 7.2" (w) x 4.8" (h) x 1.7" (d)

Rear View Camera Specifications:

Image Sensor 1/3" SHARP CCD Sensor Horizontal Resolution 420 TV Lines

Effective Pixels 512(H) x 492(V) Minimum Illumination 0 LUX (w/ LEDs on) / F:2.0

Horizontal Sync Frequency
15,734 kHz
Vertical Sync Frequency
60 Hz

Sensing Area
4.9 mm x 3.7 mm
Sync System
Internal

Video Out Signal 1.0 Vp-p 75 ohm Power Supply DC 12V

AGC
Auto
S/N Ratio
Better than 48dB

Electronic Shutter
1/60 - 1/10,000 second
Weight
Approx. 13.4 oz (380 g)

IR Distance 3 - 5 meters (10 - 15 feet)
Built-in Lens
f=2.8mm / F=2.0

Cable Output
Standard RCA Video (Yellow) & DC (Red) Jack
BLC
Auto

White Balance
Auto
TV System
NTSC

Operating Temperature
-4°F - 158°F (-20°C - 70°C) / RH 95% Max
Storage Temperature
-40°F - 176°F (-40°C - 80°C) / RH 95% Max

Current Consumption
Max 300mA
Lens Angel
Wide View Angel 120°

Dimensions (see picture below) 75 mm (w) x 62 mm (h) x 55 mm (d) with bracket -> approx. 2.9" (w) x 2.4" (h) x 2.2" (d)

(specifications are subject to change without notice)

Approx. 2.9" (w) x 2.4" (h) x 2.2" (d)

Side View System Specifications:

Image Sensor	1/3" SHARP CCD Sensor	Horizontal Resolution	420 TV Lines
Effective Pixels	512(H) x 492(V)	Minimum Illumination	0 LUX (w/IR LEDs on) / F:2.0
Sensing Area	4.9 mm x 3.7 mm	Sync System	Internal
Horizontal Sync Frequency	15,734 KHz	Vertical Sync Frequency	60 Hz
Scanning System	1/2 Interlace	Gamma Consumption	0.45
Video Out Signal	1.0 Vp-p 75 ohm	Power Supply	DC 12V
AGC	Auto	S/N Ratio	Better than 48dB
Electronic Shutter	1/60 - 1/100,000 second	Weight	Approx. 330 g (Approx. 11.6 oz)
Dimensions	109 mm (W) x 55 mm (H) x 113 mm (D) (Approx. 4.3" x 2.2" x 4.4")	Built-in Lens	f=2.8mm / F=2.0
Cable Output	Standard RCA Video (Yellow) & DC (Black) Jack	BLC	Auto
White Balance	Auto	TV System	NTSC
Operating Temperature	-4°F - 158°F (-20°C - 70°C) / RH 95% Max	Storage Temperature	-40°F - 176°F (-40°C - 80°C) / RH 95% Max
Current Consumption	Max 200mA	Lens Angel	Wide View Angel 120°

(specifications are subject to change without notice)

Approx. 4.3" x 2.2" x 4.4"

angle control rings for adjusting camera view angle ->

One Camera System Package Content:
One (1) MO136 Heavy Duty 7" Color Mobile TFT LCD Monitor with Built-in Quad Processor, one (1) CW087 Heavy Duty Color CCD Night Vision Infrared A/V Wide View Angle Vehicle Rear View Backup Camera, two (2) CCD Side Mount Color Night Vision Infrared Wide View Angle Vehicle Side View Backup Cameras, one (1) 22-pin Power A/V Cable, one (1) Front Panel A/V Input Cable, one (1) Standard Mount Bracket, one (1) Universal Mount Bracket, one (1) Remote Control, one (1) Monitor Sun Shield, four (4) Monitor Angle Adjust Screws, one (1) Camera 4-pin Power A/V to RCA Adapter, one (1) FREE bonus 30 Feet Camera Connecting Extension Cable, two (2) FREE bonus 15 Feet Camera Connecting Extension Cable, one (1) User Manual, one (1) Quick Connection Instruction, and three (3) FREE bonus Male Power Lead Plug.
